* Reduction gear of saw
blade drive is less noise by using helical gear.
* Life time broadening and overload prevention effect
of saw blade are great by compulsion
..brush installation.
* Drive of saw blade becomes 4 axes, and inside component
used alloy steel.
* If overload is produced on saw blade, I prevent breakdown
of saw blade by knockoff.
* In the center that vise department selects V- type
mode and data is correct clamping do |
|
|
|
|
 |
| ITEM
/ MODEL |

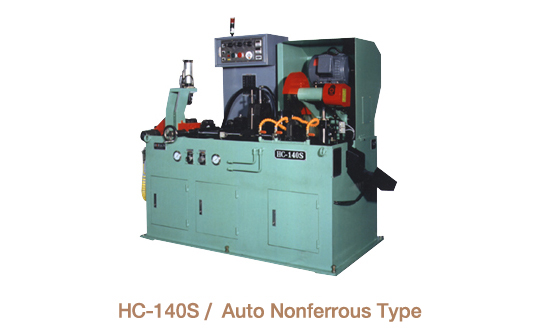

HC-140S |
| Blade
Size(mm)
(Pin Hole) |
ø275∼ø350
x 2.5t x ø40
(P.C.D 64 X ø12 X 4 Hole)
|
|
Blade Speed (r.p.m) |
700 ∼ 3600 |
| Loading
Length (mm) |
Cylinder
Type : 3 ∼ 400 mm (3 Cycle)
Roller Type : 250 ∼ 4,000 mm |
| . Cutting
Accuracy (mm) |
±0.1 |
| Blade
Motor (Kw) |
3.7 ∼ 7.5 |
| . Hydraulic
Motor (Kw) |
3.7 |
| ..Coolant
Motor |
180 W |
| ..Coolant
Capacity |
120 Liter |
| ..Work
Feeding |
Full Auto |
| ..Cutting
Capacity |
● |
ø10 ∼ ø100 |
○ |
ø10 ∼ ø100
(Over 1.0 t) |
□ |
10 mm x 80
mm |
| ..Material
length (mm) |
1,800 ∼ 6,000 |
..Dimension
: Height (mm)
...................Width
(mm)
...................Depth
(mm)
|
1,750
1,700
1,500 |
| ..Weight
(Kg) |
2,300 |
| * We make possible
for your company's request specification. |
| * Above specification
is subject to change without notice for improvement |
|
|
|
|
