* Hardness Mandrel Shaft of built-in type was
attached.
* Preliminary welding work does not need.
* Freedom set of weld length is easy.
* Curtailment effect of welding expense is great.
* Control feed speed of torch by Servo Motor. |
|
| |
|
 |
| ..Input
Voltage(V) |
AC 220/ 380V, ©ª3,¡¾10% |
|
..Frequency(HZ) |
50/60 |
| ..Duty
Cycle(%) |
40 |
| ..Air
Pressure (kg/§²) |
4.5~6 |
| ..Temperature(¢ªC) |
0~45 |
| ..Moisture(%) |
Under 90 |
| ..Supply
Gas |
High Purity Argon Gas |
| ..Stroke(mm) |
1,000 |
| ..Diameter(mm) |
©ª100~©ª650 |
| ..Welding
Speed(mm/min) |
100~2,000 |
| ..Feed
Speed(mm/min) |
2,000~6,000 |
|
|
| |
 |
| Model |
Ability |
Remark |
| ..HWA-150CR |
©ª150 |
Circle W/D |
| ..HWA-250CR |
©ª250 |
Circle W/D |
| ..HWA-275TR |
©ª275 |
Circle W/D |
| ..HWA-500CRD |
©ª500 |
Circle W/D |
| ..HWA-600CRD |
©ª600 |
Circle W/D |
| ..HWA-200TD |
200mm(Right, Left) |
Straight W/D |
| ..HWA-400TD |
400mm(Right, Left) |
Straight W/D |

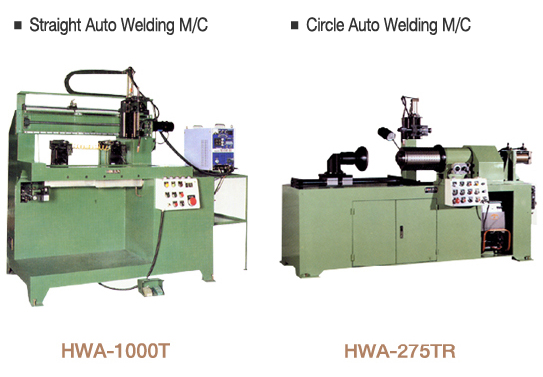

| ..HWA-700T |
700mm |
Straight W/D |
| ..HWA-1000T |
1000mm |
Straight W/D |
| ..HWA-1250T |
1250mm |
Straight W/D |
|
| |
|
| |
| |
| * We make possible for your company's
request specification. |
| * Above specification is subject
to change without notice for improvement |
|
|
|
|
|
|
