* Strong high speed cutting
is available by choice of vertical guide.
* Choice of assistance vise which do control possibility.
* Extend damage east by southeast earth of saw blade
and life-time by steel brush sticking.
* Rate Control is easy according to cutting speed and
force control of vise is easy.
* Installation and driving are easy in crawl space by
miniaturization of machine. |
|
|
|
|
|
| |
 |
| ITEM
/ MODEL |

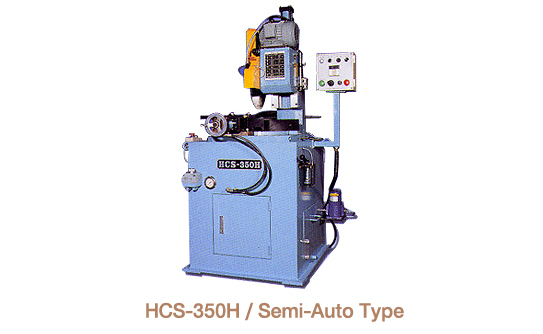

HCS-350H |
| Blade
Size(mm)
(Pin Hole) |
ø315 ~ ø350 X 2.5t X ø40
(P.C.D 64 X ø12 X 4 hole) |
|
Blade Speed (r.p.m) |
16,24,32,48,60 |
| Blade
Motor |
1.5KW |
| Hydraulic
Motor |
1.5KW |
| Coolant
Motor |
100W |
| Hydraulic
Tank Capacity |
60L |
| Dimension
(mm) |
1320(W) X
1000(D) X 1715(H) |
| Cutting
Capacity |
TILT |
90˚
|
45˚ |
|
● |
ø10∼ø100 |
ø10∼ø100 |
○ |
ø100 |
ø100 |
Angle |
100 x 100 |
90 x 90 |
□ |
100 x 100 |
100 x 75 |
| ■ |
100 x 100 |
90 x 90 |
| Weight
(kg) |
970 |
| * We make possible
for your company's request specification. |
| * Above specification
is subject to change without notice for improvement |
|
|
|
|
