| * Can work straight and
curved line cutting for ferrous , nonferrous. |
| * Using pulley of change
speed can easily change the saw blade speed. |
| * Can know the speed of saw blade that Digital
Speed Meter is operating being attached. |
* Because blade cutting, I.C welder, grinder
are attached, welding of saw blade are
..
very easy. |
* Because upper and lower wheel was Urethane
coating, prevent that come off of saw
..
blade during work. |
|
|
|
|
|
| |
 |
| ITEM
/ MODEL |

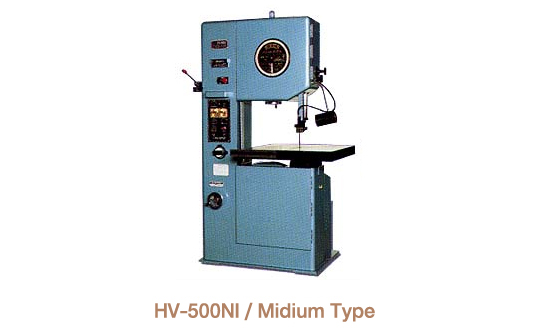

HV-500NI |
| Capacity
: Throat Size(mm)
Capacity
: Work Height (mm) |
500
280 |
| Blade
Wide (mm) |
2-19 |
| Blade
Length : 2Wheel(mm)
Blade
Length : 3Wheel(mm) |
3755-3975 |
| Blade
Speed : (60Hz)m/min |
18-100 |
| Wheel
: Diameter(mm)
Wheel
: Adjustment(mm) |
520
120 |
| Table
Size (mm) |
600 X 700 |
| Table
Height (mm) |
(A)1010 |
| Drive
Motor : Power Input (KW)
Drive
Motor : Cycle(Hz)
Drive
Motor : Phase(ø) |
1.5
60
3 |
| Blade
Welder Capacity (KVA) |
3 |
| Work
Feed |
Manual |
Dimension
: Height (mm)
Dimension
: Width (mm)
Dimension
: Depth (mm)
|
2,135
1,360
1,030 |
| Weight(kg) |
750 |
| * We
make possible for your company's request specification. |
| * Above
specification is subject to change without notice for
improvement |
|
|
|
|
